Heatmaps: Native User‑Interaction Visualizations in Convert

See Users Clicks, Scrolls & Taps Without Hassle


Author: George F. Crewe

THIS ARTICLE WILL HELP YOU:


What Are Heatmaps?

A heatmap is a color‑coded overlay that shows where visitors click, tap, and scroll on a page. Red, orange, and yellow areas represent high activity, while cooler colors indicate low engagement. By visualizing how users interact with your page, heatmaps complement quantitative metrics and help you spot friction points or content that attracts attention.

Before the native heatmaps feature, Convert users relied on third‑party tools like Hotjar or Microsoft Clarity. Convert’s native heatmaps remove that friction by generating click, tap and scroll heatmaps automatically for every page and variation in your experiment.

Prerequisites & Availability

📒 Note:

Heatmaps are included in all Convert plans purchased from March 2025 onward. If you’re on a legacy plan purchased before March 2025, availability depends on whether your plan includes Visitor Insights.

Heatmaps use the same Visitor Insights infrastructure that powers Convert Signals, our session‑recording feature. This shared tracking means heatmaps are available only when both of the following conditions are met:

  1. Your plan includes Visitor Insights. Convert Signals is a session recording feature embedded in the Reports and Locations section of Convert Experiences. Plans that include Signals also unlock heatmaps, because they use the same tracking and limits.
  2. Project‑level setting is enabled. Signals and heatmaps must be turned on in the Project Configuration settings. In the Signals article, the recordings are accessible only if the project‑level setting is enabled. Convert has consolidated this into a single toggle labeled Convert Signals & Heatmaps.

Heatmaps and session recordings are governed by two limits: a shared monthly project quota and a per-heatmap visitor limit.

1. Monthly project quota

Heatmaps and session recordings share one monthly quota per project, sized according to your Convert plan. Every experience in the project draws from this quota. You can see how much has been used on the Signals & Heatmaps Quota bar on each experience.

If the monthly quota is reached, new heatmap data and session recordings pause. Collection resumes automatically when the quota resets each month. The next reset date is shown in the Heatmaps tab.

Existing heatmaps remain visible where data has already been generated, but new heatmaps or missing device/variation combinations may not populate until the quota resets.

2. Per-heatmap visitor limit

Each heatmap also stops collecting once it reaches its configured visitor limit. You can raise or lower this limit in your project settings. Reaching the visitor limit stops only that particular heatmap and does not affect your monthly project quota.

Session recordings

Recordings are captured for visitors who take part in your experiences. All recordings linked to an experience are available to you. You can also filter recordings to show only sessions where visitors encountered problems on the page.

Controlling usage

Heatmap and session-recording data is collected only while experiences are active. You can also adjust the sampling rate in your Signals & Heatmaps settings to control what share of visitors is recorded. Lowering the sampling rate can help you pace your monthly quota across the month.

Additional availability considerations:

  • Web projects only. The Heatmaps tab appears only in web projects. Full‑stack projects hide the tab entirely. If you open a full‑stack project you won’t see heatmaps.
  • Experiments and deploys. Heatmaps work for client‑side A/B tests and Deploys. They are not supported for server‑side or full‑stack experiments. If your project is locked or you see a message asking you to enable Signals & Heatmaps, ensure the toggle is on and that your plan includes Visitor Insights.

Shared monthly quota. Heatmaps and Signals draw from the same monthly project quota, while individual heatmaps also have their own configurable visitor limit.

Enable Heatmaps in Your Project

Follow these steps to activate heatmaps for a project:

  1. Open your project settings. In the Convert app, navigate to Project Settings → Configuration.
    13-2
  2. Locate the Convert Signals & Heatmaps toggle. This toggle controls both session recordings and heatmaps. When off, the Heatmaps tab is locked and displays a message instructing you to enable Signals & Heatmaps. The screenshot below shows the Heatmaps tab locked with the enable message.
    16-1

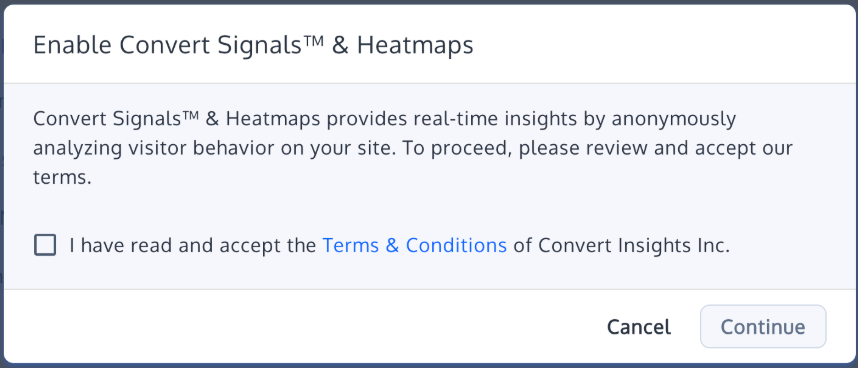

  3. Enable the toggle. Turn on the Convert Signals & Heatmaps switch. You’ll see a confirmation pop‑up asking you to accept the terms and conditions for session recordings and heatmaps. Click Enable.




    15-2
  4. Publish your changes. Once enabled, heatmaps and Signals become active for all new experiments and deploys in that project. If you return to an experience summary page, you’ll now see the Heatmaps tab visible between Report and Change History.

    For older experiences, Convert may ask you to pause and reactivate the experience before heatmaps can be generated. If this applies, the Heatmaps tab will show an in-app message explaining that action.


    17-1

    If you disable the toggle later, both features will be hidden and existing heatmaps will stop updating. Enabling again restores access.

Use the Heatmaps Tab

The Heatmaps tab provides a unified interface to explore click, move, tap and scroll behavior across devices and variations. When you first open the tab, a screenshot of your page appears with a color overlay and a panel of controls at the top. The example below shows a click heatmap with the left panel listing the most‑clicked elements and a color legend at the bottom.

1. Choose an Action Type
Use the Action dropdown to select Clicks, Taps or Scrolls. Clicks show where users clicked, Moves display mouse movement (helpful for desktop hover interactions) and Taps show touch interactions on mobile. Selecting Taps automatically switches the device to Mobile, and selecting Mobile automatically sets the action to Taps.
21-1

2. Select Device & Resolution

Heatmaps can be filtered by device (Desktop, Tablet or Mobile) and resolution. Device and resolution are grouped together in a single dropdown similar to the Visual Editor. This lets you quickly switch between form factors without cluttering the UI. The default view uses the resolution associated with the variation.
22-2

3. Switch Variations

Use the Variation dropdown to view heatmaps for different variations or the original. Each variation in your experience has its own heatmap per variation. When you switch pages or variations, the left panel and legend update automatically.

4. Check Signals & Heatmaps Quota Usage

The Heatmaps tab may show a Convert Signals™ & Heatmaps quota indicator. This indicator displays how much of your shared Signals and Heatmaps capacity has been used.

When quota usage is below the limit, the tooltip shows the current recording quota percentage and the reset date. For example:

“Recording Quota: 75%. Used for Signals and Heatmaps. Capacity resets on June 15, 2026.”

When quota usage reaches 100%, Convert may show a warning that new recordings are temporarily paused until more capacity is available. For example:

“You’ve reached the 100% usage limit of Signals & Heatmaps for your project. New recordings are temporarily paused until more capacity is available, limit resets on June 15, 2026.”

Because Signals and Heatmaps use the same monthly project quota, reaching the limit can affect heatmap creation as well as session recordings.

Collection resumes automatically when the monthly quota resets. The Heatmaps tab shows the next reset date.

Remember that this monthly quota is separate from the visitor limit assigned to each individual heatmap. If an individual heatmap reaches its visitor limit, only that heatmap stops collecting; the project’s monthly quota and other heatmaps are unaffected.

5. Adjust Collection Usage

You can manage how quickly your project uses its monthly Signals & Heatmaps quota from your project settings.

The sampling rate determines what share of eligible visitors is recorded. Reducing the sampling rate can help spread collection across the month rather than using the quota too quickly.

You can also adjust the visitor limit for individual heatmaps. Once a heatmap reaches that limit, collection stops for that heatmap only.

Data is collected only while the relevant experiences are active.

Troubleshooting & FAQs

I don’t see the Heatmaps tab. What is wrong?

If the Heatmaps tab is missing, locked, or the heatmap does not appear, check the following:

1. Confirm that you are using a supported project type
Heatmaps are available for web projects, client-side experiments, and deploys. They are not available for full-stack or server-side experiments.

2. Confirm that your plan includes Visitor Insights
Heatmaps use the same Visitor Insights infrastructure as Convert Signals. If your plan does not include Visitor Insights, the Heatmaps tab may be locked or unavailable.

3. Confirm that Convert Signals & Heatmaps is enabled
Go to Project Settings → Configuration and make sure the Convert Signals & Heatmaps toggle is enabled. This setting controls both session recordings and heatmaps.

4. Check Signals & Heatmaps quota usage

Signals and Heatmaps share a monthly project quota. If the project reaches 100% of its monthly quota, new session recordings and heatmap data collection are temporarily paused until the quota resets. Collection resumes automatically after the reset. Convert shows quota usage indicators in the Heatmaps tab when usage information is available. Also check whether the selected heatmap has reached its individual visitor limit. If it has, only that heatmap stops collecting. You can adjust the per-heatmap visitor limit in your project settings.

5. Wait for the first sampled visitor
A heatmap base image is generated only after the first visitor is captured in the sample, based on the sampling rate, for that specific device and variation combination. After the base image is generated, activity layers such as clicks, taps, and scrolls populate over time.

6. Try another device, resolution, variation, or action type
Heatmaps are generated per device and variation combination. One device or variation may already have data while another is still waiting for enough sampled visitor activity.

Why does Convert say “Heatmap creation is paused due to the usage limit”?

This message appears when your Signals & Heatmaps quota has reached 100% while a heatmap is still being created or waiting for more data. In this state, Convert cannot continue collecting new heatmap data until the quota resets.

The message shown in-app is:

“Heatmap creation is paused due to the usage limit. It will resume automatically when the limit resets.”

Once the quota resets, heatmap creation resumes automatically. You do not need to reinstall the Convert tracking code or create a new experience.

Recommended screenshot:

(Add the screenshot showing the message “Heatmap creation is paused due to the usage limit. It will resume automatically when the limit resets.”)

What happens when an individual heatmap reaches its visitor limit?

Each heatmap has a configurable visitor limit. Once that number of visitors has been reached, Convert stops collecting new data for that heatmap.

This does not pause other heatmaps, session recordings, or your monthly project quota. You can raise or lower the per-heatmap visitor limit from your project settings.

Why does Convert say this experience has not collected any heatmap data yet?

This message may appear when the experience was created or activated after the Signals & Heatmaps quota was already exhausted, or when no sampled visitor has been captured yet for the selected device and variation.

The in-app message may say:

“This experience hasn’t collected any heatmap data yet. Once your quota resets, it will be captured and the heatmap will populate over time.”

Heatmap data will start populating automatically once quota is available and a visitor is captured in the sample for the selected device and variation combination.

Why does Convert say “This heatmap isn’t available yet”?

This message means the selected heatmap cannot be displayed yet. It usually means one of the following:

- Data is still being collected.
- No sampled visitor has been captured yet for the selected device and variation.
- The Signals & Heatmaps usage limit has been reached.
- The individual heatmap has reached its configured visitor limit.
- The base image or activity overlay is still being generated.

The in-app message may say:

“This heatmap isn’t available yet. This usually means data is still being collected, or your usage limit has been reached. It will appear automatically once data is available.”

The heatmap will appear automatically once data is available unless its individual visitor limit has been reached, in which case you can adjust the limit in your project settings if you want to continue collecting data for it.

How do session recordings work with experiences?

Session recordings are captured for visitors who participate in your active experiences. All recordings associated with an experience are available from that experience.

You can also filter recordings to focus on sessions where visitors encountered problems on the page.

How can I control how quickly my quota is used?

Data is collected only while experiences are active.

You can also change the sampling rate in your Signals & Heatmaps settings. The sampling rate controls what share of eligible visitors is recorded, so lowering it can help pace your monthly quota across the month.

For heatmaps, you can separately adjust the visitor limit assigned to each individual heatmap.

Can I use heatmaps on Deploys?

Yes. Heatmaps are available on client‑side Experiments and Deploys. They are not supported for server‑side experiments or full‑stack projects.

Do I need to install additional scripts?

No. Native heatmaps rely on Convert’s tracking integration and therefore require no external scripts. Your existing Convert installation is sufficient. Third‑party tools like Hotjar still require their own scripts and manual triggers.

Can I export heatmap images?

Not yet. We’re working on export options. In the meantime, you can use a screen capture tool to save the view.

What about privacy?

Heatmaps are generated from aggregated, anonymous interaction data. They do not capture personal information or sensitive form fields. For more details on privacy and session recording, see the Convert Signals article.
